REA LASER CL

CO2 Laser Technology

Industrial coding and marking with CO2 Laser Systems from REA LASER have a decisive advantage: they are consumables-free and virtually maintenance-free, i.e. low follow-up costs. The REA LASER CL laser marker is simple and intuitive to operate. It has a graphical user interface including a modern rotary knob with touch function.

CO2 Carbon dioxide laser

10.6 µm; 10.2 µm; 9.3 µm wavelength

10 W, 30W, 60W laser power

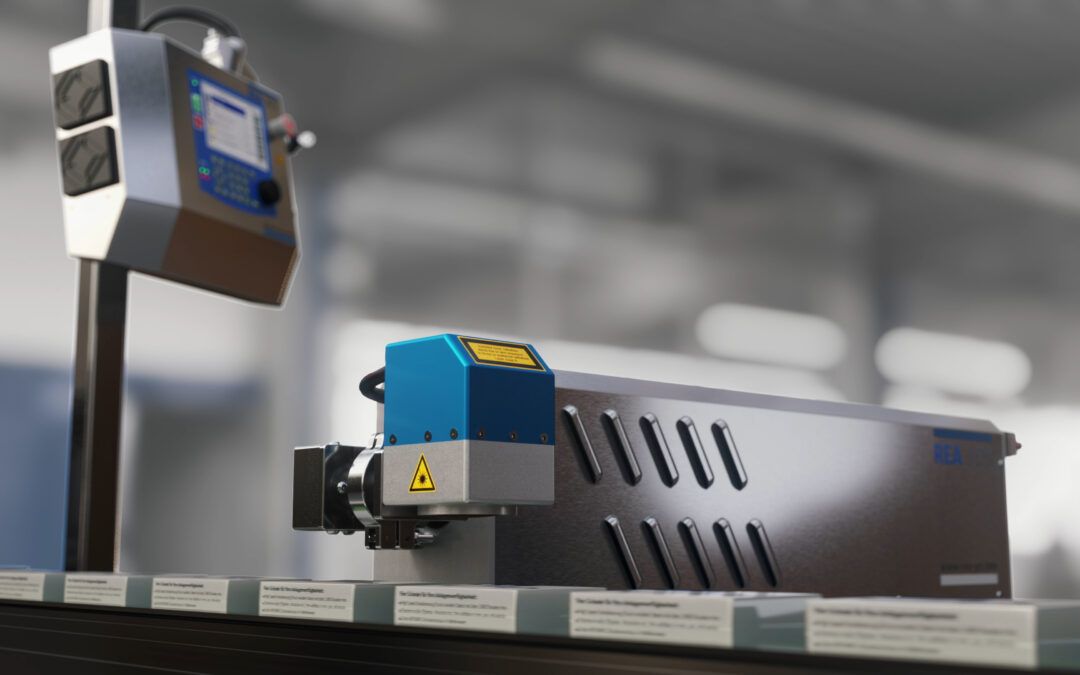

The REA LASER CL carbon dioxide laser is ideal for industrial laser marking. Thanks to its compact design and freely rotatable print head, it is easy to integrate into production plants or manufacturing plants.

TheCO2 Laser marking system can be used for marking packaging, plastic and aluminum components, glass and wood as well as food, among other things. Texts and graphics of all kinds up to a size of 250 x 250 mm, including dynamic text fields, can be created.

The integrated pilot laser also allows REA LASER CL to set up new products fast. The maintenance-free and almost maintenance-free operation as well as the possibility of remote diagnosis and remote maintenance make theCO2 laser marker particularly economical.

It generates the laser beam using a carbon dioxide laser. Energy is supplied to a mixture ofCO2 ( carbon dioxide), N2 (nitrogen) and He (helium) in a sealed laser tube, producing light waves. These emerge from the tube as a laser beam and are directed onto the product to be marked via mirrors. When the laser beam hits the product surface, high temperatures are produced which vaporize the surface material. This produces an engraving, a color change or a color removal. The marking is contact-free, precise and fast.

Product Applications:

Marking of organic materials such as wood, leather, paper, cardboard and foodstuffs
Marking of folding boxes, packaging, packaging material and secondary packaging (e.g. in the pharmaceutical, cosmetics and food sectors)
Alphanumeric texts, 1D-Barcodes, 2D-Matrix-Codes, machine-readable codes and logos
Variable data such as date, time, counter, shift code and database content
Coated substrates (e.g. anodized aluminium)
Direct marking of foodstuffs
Marking on laser envelope color
Engraving on color mirrors
Engraving on glass (window glass, drinking glasses, mirrors, etc.)
Rubber such as elastomers and thermosets (BR, NBR, IIR, EPDM, CR and IR)
Silicone such as MQ, VMQ, PVMQ, PMQ, FMQ, FVMQ
Different processes are used depending on the material: Tempering, engraving, ablation, foaming, color change
