REA JET GK 2.0

High Resolution Piezzo for Porous Substrates

The piezo-based, high-resolution marking system REA JET GK 2.0 is suitable for direct, high-contrast marking on absorbent and porous surfaces such as wood, cardboard or paper with a variable writing height of up to 100 mm.

Up to 1200 dpi

horizontal resolution

Up to 100mm

writing height

IP 65

protection class

Text, 1D/2D codes and graphics such as company logos or product images can be freely combined. A horizontal resolution of up to 1200 dpi ensures high print quality with excellent edge sharpness directly on the product. This makes the new generation of piezo inkjet printers a cost-saving and flexible alternative to labels or pre-printed boxes .

The colored, solvent-free inks of the REA JET GK 2.0 are particularly suitable for porous surfaces and can be easily changed during operation. The optional maintenance module ensures simple, quick cleaning with a minimum of maintenance effort and optimal availability.

Depending on the labeling requirements and installation situation, different device versions are available. The compact design enables easy integration. “The REA JET GK 2.0 offers a wide range of benefits for industrial labelling. Thanks to first-class print quality, versatile application options and easy operation, it is a trustworthy solution for product labelling in various sectors.

Freely selectable horizontal print resolution up to 1200 dpi

Very high font and code quality, sharp edges
and high contrast

Operating temperature: +5°C to +35°C

Solvent-free specialty inks

Two model variants: GK 768/256, writing height up to 100 mm and GK 384/128, writing height up to 50 mm
Available in two versions: fixed and hose-connected

Control via REA JET TITAN platform”

Product Applications:

Porous and absorbent surfaces: paper, cardboard, wood, textiles, nonwovens, building materials, etc.
Flexible alternative to labels and pre-printed cardboard boxes
serialization and track & trace applications
Qualitative code verification in one process with testing equipment from REA VERIFIER
Alphanumeric texts, machine-readable 1D and 2D codes and logos
Variable data such as date, time, counter, shift code, database contents, etc.

Download the REA GK product sheet

The system

GET TO KNOW THE SYSTEM

P

Controller

Smart Control, Your Way

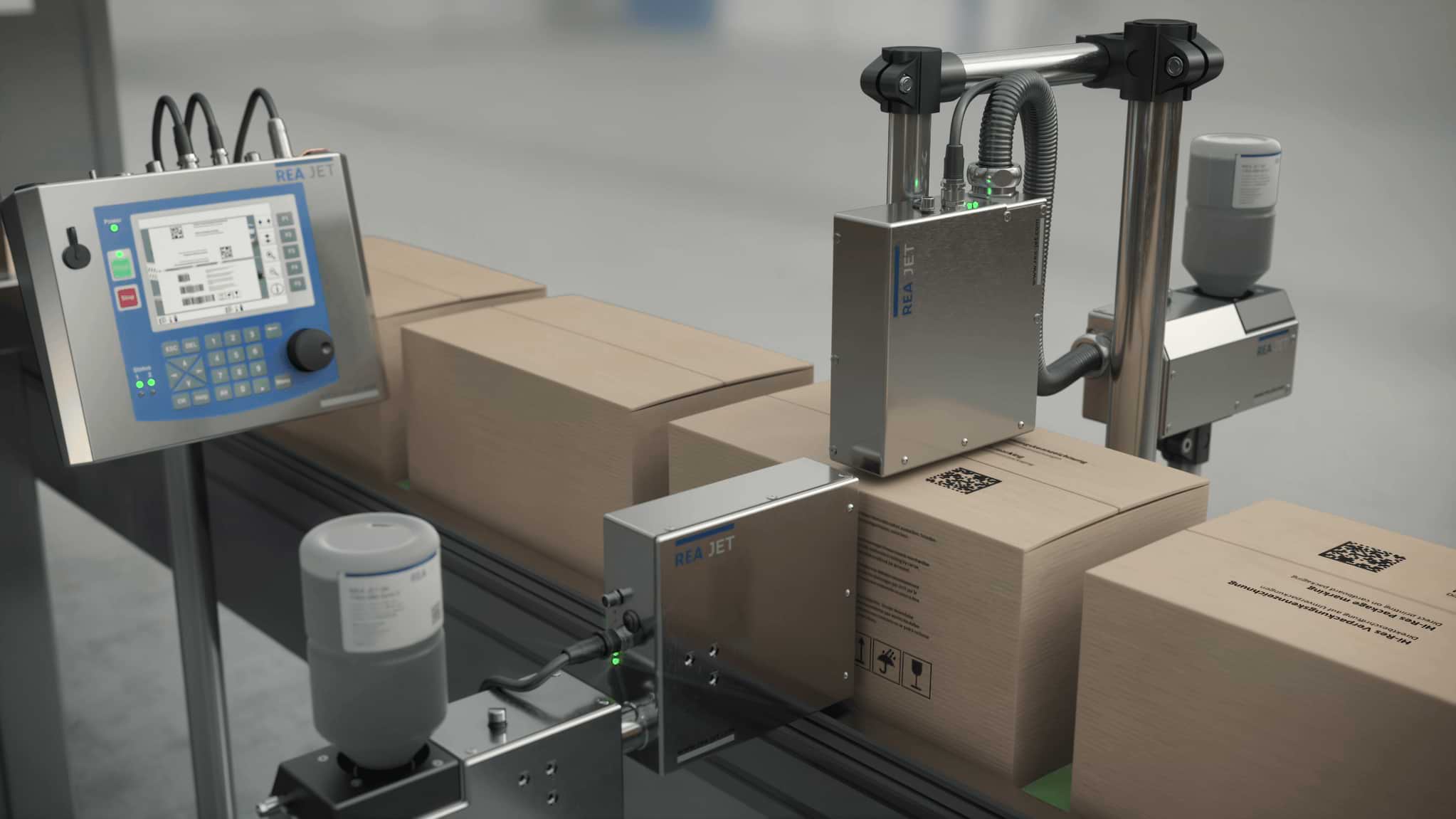

The REA JET GK 2.0 system gives you the flexibility to choose between two intuitive controllers. The Universal Controller combines rotary dials, a ten-key pad and a cursor block, supporting up to two print heads with a total print height of 200 mm. For a more modern touch, the Universal Touch Controller features a large 10.1″ touchscreen with a glove-compatible, tile-based interface. It supports up to four print heads for print heights up to 400 mm — ideal for larger-scale marking applications.

P

Print Heads

Robust Print Heads Built for Industry

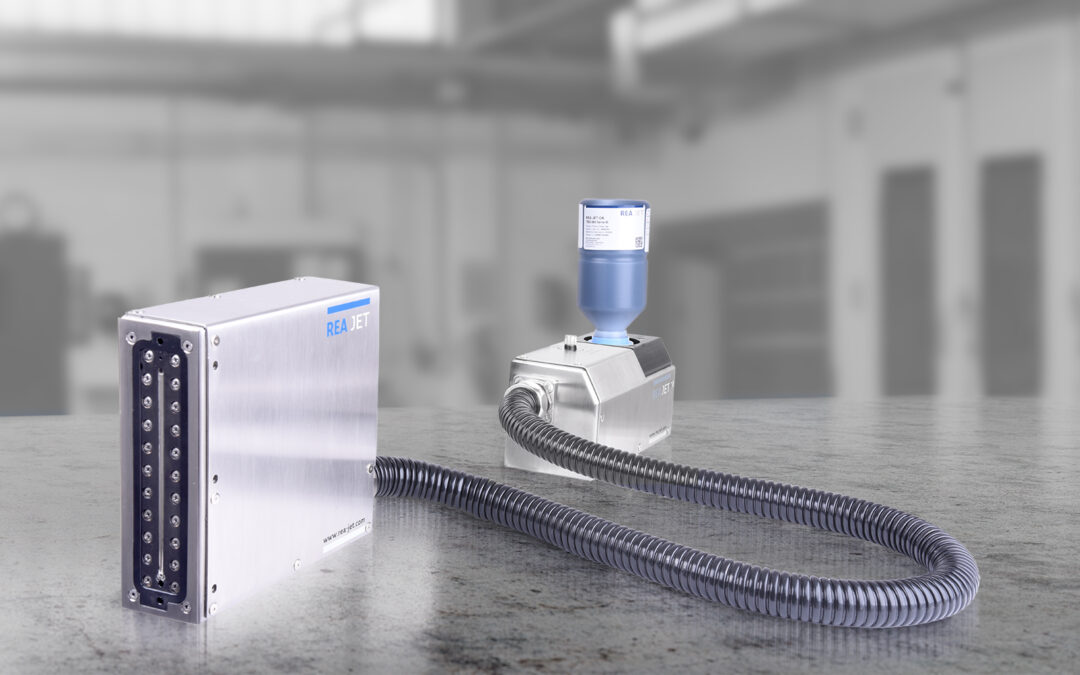

Designed for precision and durability, the REA JET GK 2.0 print heads come in two variants: the GK 768/256 with a max print height of 100 mm for large, bold marking, and the GK 384/128 offering 50 mm for smaller, detailed work. Both options feature IP65-rated protection, ensuring reliable performance in dusty or wet environments. Choose from fixed-head models for simple, sturdy setup or hose-connected versions for flexible installation in more complex production lines.

P

Ink Supply

Efficient, Eco-Friendly Ink Supply
With its solvent-free, colour-varied ink options and efficient supply system, the GK 2.0 keeps costs low and performance high. Resolution settings can be adjusted to match different printing needs, while clean, on-the-fly ink changes reduce downtime. It’s a practical, environmentally conscious choice for companies looking to balance performance with sustainability.

Our REA JET DOD 2.0 printing system offers you the choice between two different controllers: the Universal Controller and the Universal Touch Controller. Both controllers enable intuitive operation of the printing system.

With the Universal Controller, you can operate the system using the rotary and push buttons on the control unit. This controller also has a number pad and a cursor block.

The Universal Touch Controller uses the latest technology. It is operated exclusively via the large 10.1" display. With no buttons or knobs, operation is even simpler and more intuitive. The tile-based user interface of the Universal Touch Controller even allows the coding and marking system to be precisely controlled with gloves.

The ability to connect print heads with up to 1024 nozzles to one controller gives you a high degree of flexibility and allows you to configure the printing system to suit your individual requirements.

Our REA JET DOD 2.0 printing system offers you the choice between two different controllers: the Universal Controller and the Universal Touch Controller. Both controllers enable intuitive operation of the printing system.

With the Universal Controller, you can operate the system using the rotary and push buttons on the control unit. This controller also has a number pad and a cursor block.

The Universal Touch Controller uses the latest technology. It is operated exclusively via the large 10.1" display. With no buttons or knobs, operation is even simpler and more intuitive. The tile-based user interface of the Universal Touch Controller even allows the coding and marking system to be precisely controlled with gloves.

The ability to connect print heads with up to 1024 nozzles to one controller gives you a high degree of flexibility and allows you to configure the printing system to suit your individual requirements.
