REA JET ST

Spray Mark Technology

REA marking and coding systems are suitable for precise line and dot marking as well as the flat application of a wide range of high- and low-viscosity media on a wide variety of industrial products and materials.

Up to 75 m/min

Up to 700mm writing height

TITAN platform as an operating concept

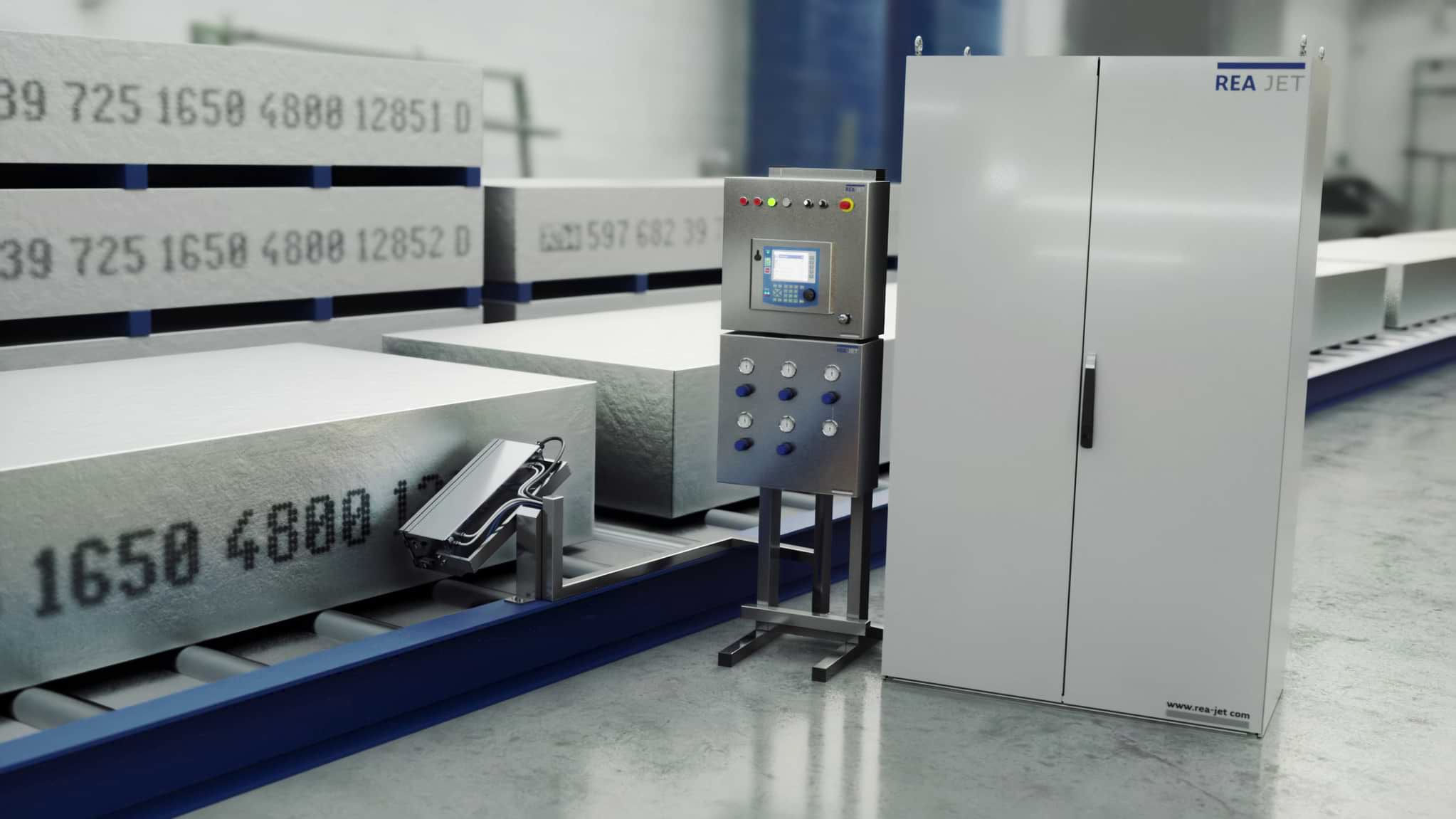

The REA JET ST 2.0 marking system is the ideal solution when products need to be marked with paints and varnishes that are easy to read from a distance . To produce very large,  easily readable alphanumeric markings, several marking heads are combined to form a marking block . This innovative technology enables information such as material names, batch numbers, 2D codes and logos to be marked at a writing height of 40 mm up to an impressive 700 mm, as well as the application of primers and process fluids over large areas .

Especially in the aluminum and steel industries, the processing of glow-resistant colors and hot-marking colors is an important requirement that the REA JET marking system reliably meets. This advanced system can be used to automatically produce large fonts – a perfect alternative to conventional stencil technology and marking pens.

The marking blocks are controlled via the REA JET TITAN platform , REA’s uniform and cross-technology operating concept. This intuitive platform makes it possible to efficiently manage and control various marking technologies.

Product Applications:

  • Alphanumeric identification
  • Two-line labeling with logos and 2D codes
  • Markings with hot marking ink, glow ink and high temperature resistant ink marking under extreme conditions
  • Good recognition and readability of the marking from a long distance
  • Application of contrasting color mirrors for subsequent labeling
  • Marking with fluorescent and UV varnishes
  • Sealing with protective varnish
  • Dosed application of oils and release agents
  • Targeted application of adhesives and screw sealing varnish

The system

GET TO KNOW THE SYSTEM

P

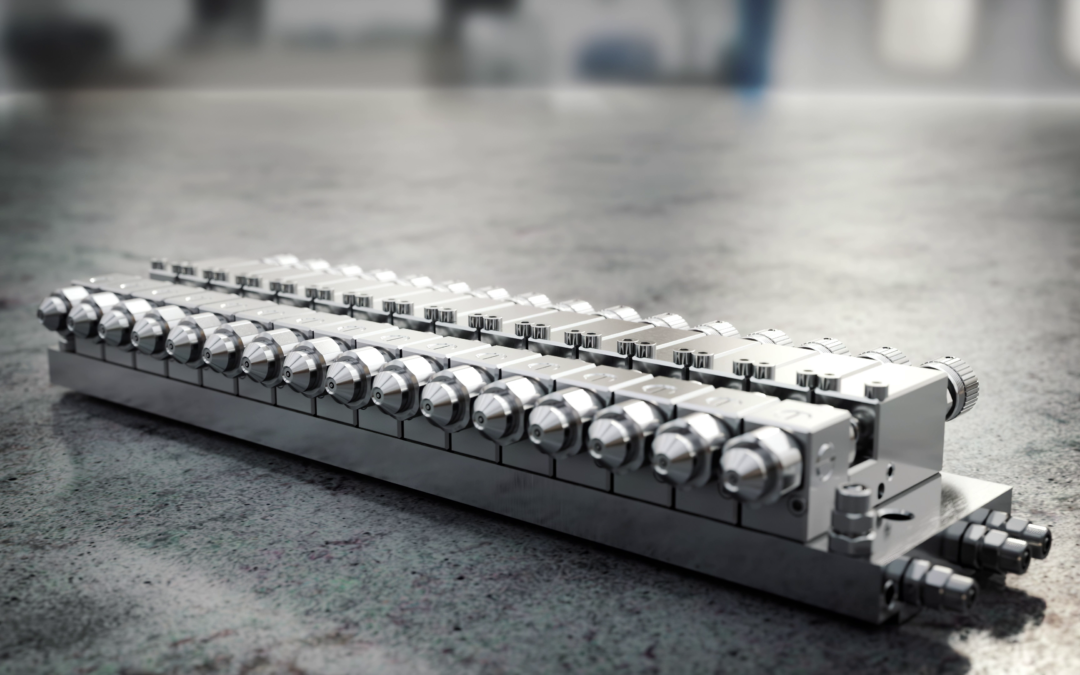

Spray Mark Block

Versatile Spray Marking Blocks
The REA JET ST series includes three high-performance spray mark blocks — SRP-7, SRP-10 and SRP-16 — offering tailored solutions for industrial marking tasks. With electro-pneumatic control, integrated nozzle flushing, and compatibility with paints, inks and abrasive media (including REA hot-signing inks rated up to 1000°C), these systems are built for demanding environments.

SRP-7 covers compact applications with a print height of 25–130 mm.

SRP-10 handles heights of 40–200 mm and supports 2D codes.

SRP-16 is ideal for large or complex jobs, with a range of 60–350 mm, 2D code support, and dual-line marking capability.
All models operate at speeds up to 75 m/min, delivering high efficiency and flexibility.

P

Control Cabinet

Modular Control Cabinet with TITAN Platform
The REA JET ST system is managed via a modular stainless steel control cabinet built to IP54 standards — tough enough for industrial conditions. It integrates seamlessly with the REA JET TITAN Platform, offering a consistent and intuitive interface for managing multiple coding technologies. The system is easily expandable and adaptable to suit your exact marking needs.

P

Ink Supply Cabinet

Flexible and Scalable Ink Supply Cabinets
From compact 1.5-litre tanks to fully equipped cabinets, REA offers a complete range of material supply systems. Most units feature pneumatic drum lid lifters, circulation pumps, and modular expansion options such as automatic refilling, level sensors, and redundancy systems for uninterrupted production. We also provide automatic colour change, flow and viscosity monitoring, and temperature-controlled tanks for extreme environments. Pressure vessels (MDBs) are available in sizes from 1.5 to 45 litres, with optional agitators, level indicators and more — all designed to keep your operations running smoothly.

Our REA JET DOD 2.0 printing system offers you the choice between two different controllers: the Universal Controller and the Universal Touch Controller. Both controllers enable intuitive operation of the printing system.

With the Universal Controller, you can operate the system using the rotary and push buttons on the control unit. This controller also has a number pad and a cursor block.

The Universal Touch Controller uses the latest technology. It is operated exclusively via the large 10.1" display. With no buttons or knobs, operation is even simpler and more intuitive. The tile-based user interface of the Universal Touch Controller even allows the coding and marking system to be precisely controlled with gloves.

The ability to connect print heads with up to 1024 nozzles to one controller gives you a high degree of flexibility and allows you to configure the printing system to suit your individual requirements.

Our REA JET DOD 2.0 printing system offers you the choice between two different controllers: the Universal Controller and the Universal Touch Controller. Both controllers enable intuitive operation of the printing system.

With the Universal Controller, you can operate the system using the rotary and push buttons on the control unit. This controller also has a number pad and a cursor block.

The Universal Touch Controller uses the latest technology. It is operated exclusively via the large 10.1" display. With no buttons or knobs, operation is even simpler and more intuitive. The tile-based user interface of the Universal Touch Controller even allows the coding and marking system to be precisely controlled with gloves.

The ability to connect print heads with up to 1024 nozzles to one controller gives you a high degree of flexibility and allows you to configure the printing system to suit your individual requirements.
