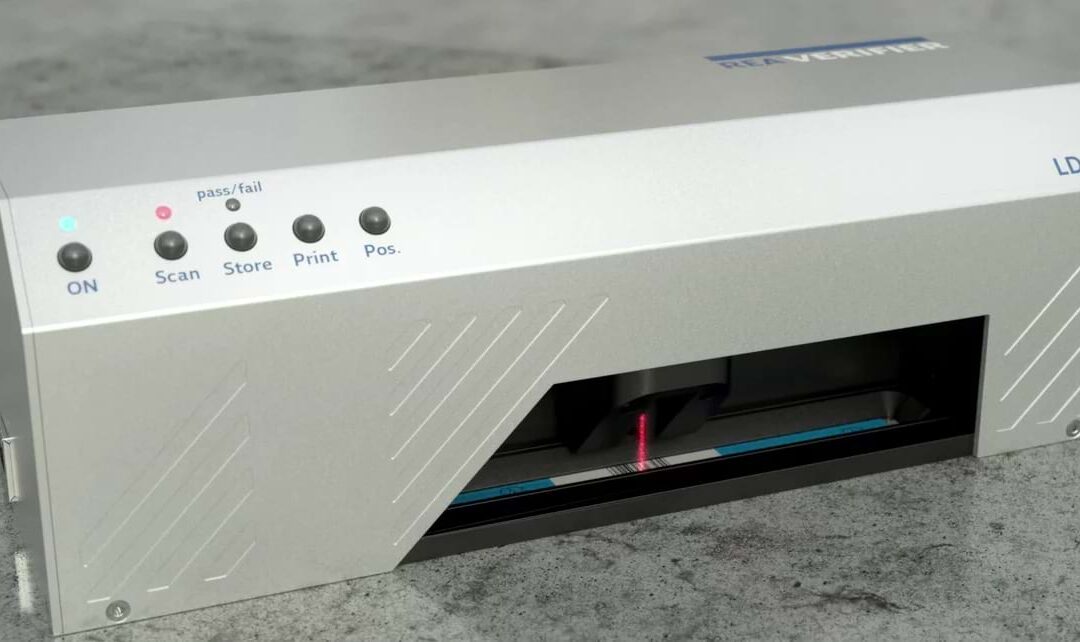

REA PC-Scan LD4

Desk based verifier for 1D barcodes

The REA PC-Scan LD4 is a barcode inspection device that conforms to ISO/IEC 15426-1 (measurement accuracy and characteristics). It is used when measurement results with the highest precision are required. The maximum measuring width of 220 mm allows the measurement of oversized barcodes and the exchangeable measuring head allows adaptation to the measurement requirements.

reference device for quality control

Two device variants available 133mm and 220 mm measuring width

testing according to ISO/IEC 15416 for 1D barcodes

The REA PC-Scan LD4 is a high-precision barcode verification device that was developed according to international standards. It is available in two versions with 133 mm and 220 mm measuring width . Thanks to fully automatic adjustment, constant 45° illumination angle, laser illumination at 670 nm and contactless measurement, it offers precise, accurate results at all times.

The precise testing and measurement of barcodes ensures that barcodes are always printed in the best possible quality. This high print quality generates high reading efficiency and first-time reading rates in the application. This not only saves time, but also prevents errors and delays in the supply chain .

The combination of state-of-the-art technology, reliable functionality and user-friendly handling makes the REA PC-Scan LD4 unique in its class worldwide. The clear results of the code test, whether passed or failed, are central elements of the evaluation and enable immediate decisions. Measurement details displayed at the same time allow a precise analysis of the barcode quality, which is supported by a graphical presentation of the extensive measurement results. This enables a quick and reliable overview and a well-founded assessment of the various code properties.

The REA PC-Scan LD4 can be used to identify reasons for low reading rates and sustainably optimize code quality . Test reports can be easily exported as PDF or CSV, which simplifies data exchange. It is an indispensable tool for precise barcode analysis and quality-assured processes.

Product Applications:

The REA PC-Scan LD4 features comprehensive functions for precise measurement and analysis of barcodes, based on the ISO/IEC 15416 and ANSI X3.182 standards . Users can activate optional parameters for optimal printing process control and save, import and export multiple setting profiles , which facilitates the configuration of multiple devices.
The device offers automatic differentiation of the most important barcode symbologies as well as a check of code sizes and check digits . The check can be expanded with optionally configurable parameters according to user specifications and symbology standards. A required minimum quality is set. The test result is only passed if the required minimum quality is achieved. Functions such as multiple measurements for averaging, checking of bright fields with extended edge zones and ratio control for two-bar width codes (e.g. Code 39, 2/5i) are part of the measurement.
To ensure compliance with GS1 specifications, the REA PC-Scan LD4 offers support in evaluating GS1 data structures and the option of displaying and printing test reports as GS1 reports. Multilingual user guidance and test reports make the device flexible for use worldwide.
